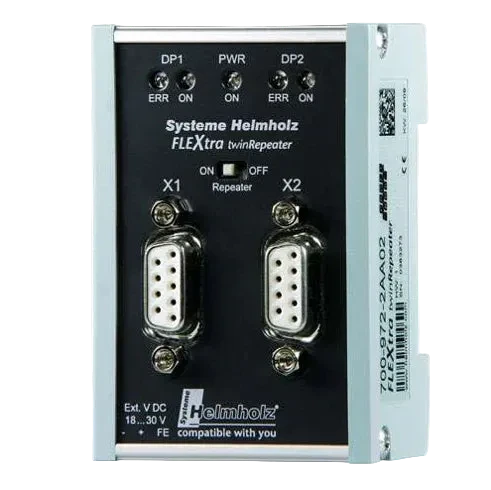

Helmholz FLEXtra twin repeater + connectors

Despite its small size, the FLEXtra® twinRepeater is a full PROFIBUS repeater designed for mounting on a DIN rail.

It regenerates the incoming electrical signal on a bus line and retransmits it (bit reshaping and retransmission).
The signals are restored in level, slope, and duty cycle.
The FLEXtra® twinRepeater supports data rates of 9.6 kbps to 12 Mbps and recognizes them automatically.

This set contains two PROFIBUS connector 90° with proven screw terminal and with PG interface required for connection to a PROFIBUS cable.
