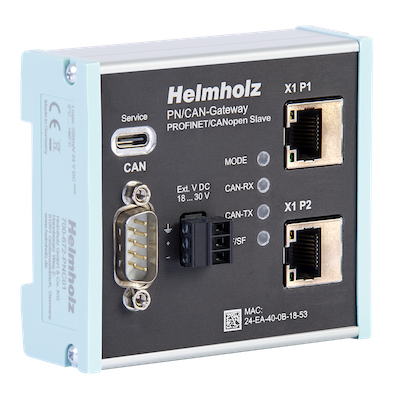

Helmholz PROFINET/CANopen gateway slave

The PN/CAN gateway “CANopen Slave” enables the coupling of machines with CANopen bus to machines with PROFINET network and represents a freely configurable full CANopen Slave Device at the CAN bus.

On the PROFINET network the PN/CAN gateway “CANopen Slave” is a PROFINET I/O device and supports transfer rates up to 100 Mbit full duplex. The data of the CANopen SDOs are transparently and freely configurably inserted into the PROFINET network and can thus be read or written directly in the PLC. The PN/CAN gateway is integrated into the hardware configurator of the PROFINET controller with a GSDML file, and all values of the CANopen slave are available as IO information. Special handling blocks are not necessary.
